Hawk Marine

 - Wind Indicators -

ASMHK01. Hawk Race

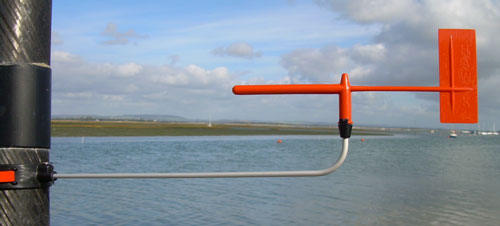

Hawk Race brings all the benefits of the Hawk Wind Indicator and mounts it in a secure manor at gooseneck height in front of the mast. Designed primarily for larger single handed Dinghies, the Hawk Race allows quick and accurate reference to wind direction without having to look at the top of the mast. Ideal for both upwind and downwind reference. The Hawk Race is also easily mounted and removed with a secure adjustable bracket. The aluminium support rod is easily bent to any required angle, but easily straightened if accidentally knocked.

Use:                          Single Handed Racing Dinghies.
Vane Arm Length:       27cm
Overall Height:            N/A
Overall Weight:           32gms
Bearing:                     “V” Jewel
UV Protected:            Yes
Balanced Arm:           Counter Weight.



Price: 20 Euro

(21.5% vat incl.)


ASMHK02. Little Hawk Mk1

The Little Hawk MK1 is a small lightweight and robust Wind Indicator designed to be positioned at the top of the mast on dinghies up to 6m. Very popular with Optimists and Toppers the Little Hawk MK1 is also ideal for any dinghy that wants accurate wind direction information with minimal weight and drag.
The Vane Arm is made of super tough nylon and is all but indestructible. The aluminium rod can be easily straightened if damaged or easily bent to any required angle. The whole unit is easily assembled straight from the box.

Use:                        Dinghy’s up to 6m.
Vane Arm Length:      16.5cm
Overall Height:           28cm
Overall Weight:          16gms
Bearing:                    Aluminium Pin
UV Protected:            Yes
Balanced Arm:            By design

Price: 10 Euro

(21.5% vat incl.)


ASMHK03. Little Hawk Mk2

The Little Hawk Mk2 brings all the benefits of the Little Hawk Mk1 Wind Indicator and mounts it in a secure manor at gooseneck height in front of the mast. Designed for smaller single handed Dinghies, the Little Hawk Mk2 allows quick and accurate reference to wind direction without having to look at the top of the mast. Ideal for upwind and downwind reference. The Little Hawk Mk2 is easily mounted and removed with a secure adjustable bracket. The aluminium support rod can be bent to any required angle, but is easily straightened if accidentally knocked. The complete unit removes for safe storage without any tools. The Little Hawk Mk2 is very popular with Topper and Laser Sailors.


Use:                              Dinghy’s up to 6m.
Vane Arm Length:          16.5cm
Overall Height:               19cm
Overall Weight:              28gms
Bearing:                        Aluminium Pin
UV Protected:               Yes
Balanced Arm:              By Design.





Price: 13.50 Euro

(21.5% vat incl.)




ASMHK04. Little Hawk Race

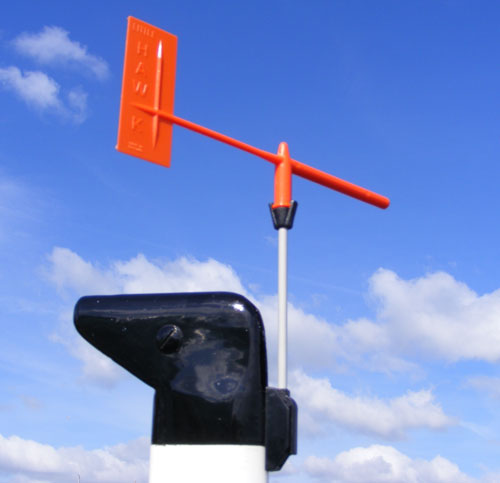

Hawk Marine Products most popular Apparent Wind Indicator, the Little Hawk MK1 has proven over time to be a simple, robust, lightweight and accurate indicator widely used by Optimists, Toppers and Lasers.

The Little Hawk Race takes the ever popular Mk1 Wind Indicator, cuts it to minimal length and provides it with a robust and lightweight mounting system. This gives the customer the lightest, least drag Wind Indicator on the market today. With its UV protection there will me no degradation in performance for many years. Ideal for all racing boats up to 8m. The Mast Clamp is screwed to the mast with 2 self tapping screws (Supplied). The Little Hawk Race is then pushed into place or removed easily in seconds without any tools.

.



Price: 10 Euro

(21.5% vat incl.)


ASMHK05. Great Hawk

The Great Hawk is a scaled up version of the original Hawk. The vane arm is made of the same super-tough nylon, and the reference arms of glassed-filled nylon - for ultimate rigidity and UV Protection.

The precision balanced vane arm and Hawks "V" jewel-bearing surface gives instant response with minimal inertia. The reference arms can be set to 55, 60 or 65 degrees, or to any preferred angle; and can be used for both upwind and downwind angles.

The Great Hawk can be easily removed from its mounting bracket with one screw, and the mast bracket can be mounted vertically or horizontally. Additionally, the Great Hawk can be bolted down to any pre-drilled 8mm holes in the mast head crane using the supplied adaptor with nut and bolt.


Use:                             Cruising & Racing Yachts to 20m.
Vane Arm Length:          38cm
Overall Height:               29cm
Overall Weight:              70gms
Bearing:                        "V" Jewel
UV Protected:               Yes
Balanced Arm:              Counter Weight.





Price: 36.00 Euro

(21.5% vat incl.)
